Equipment Name

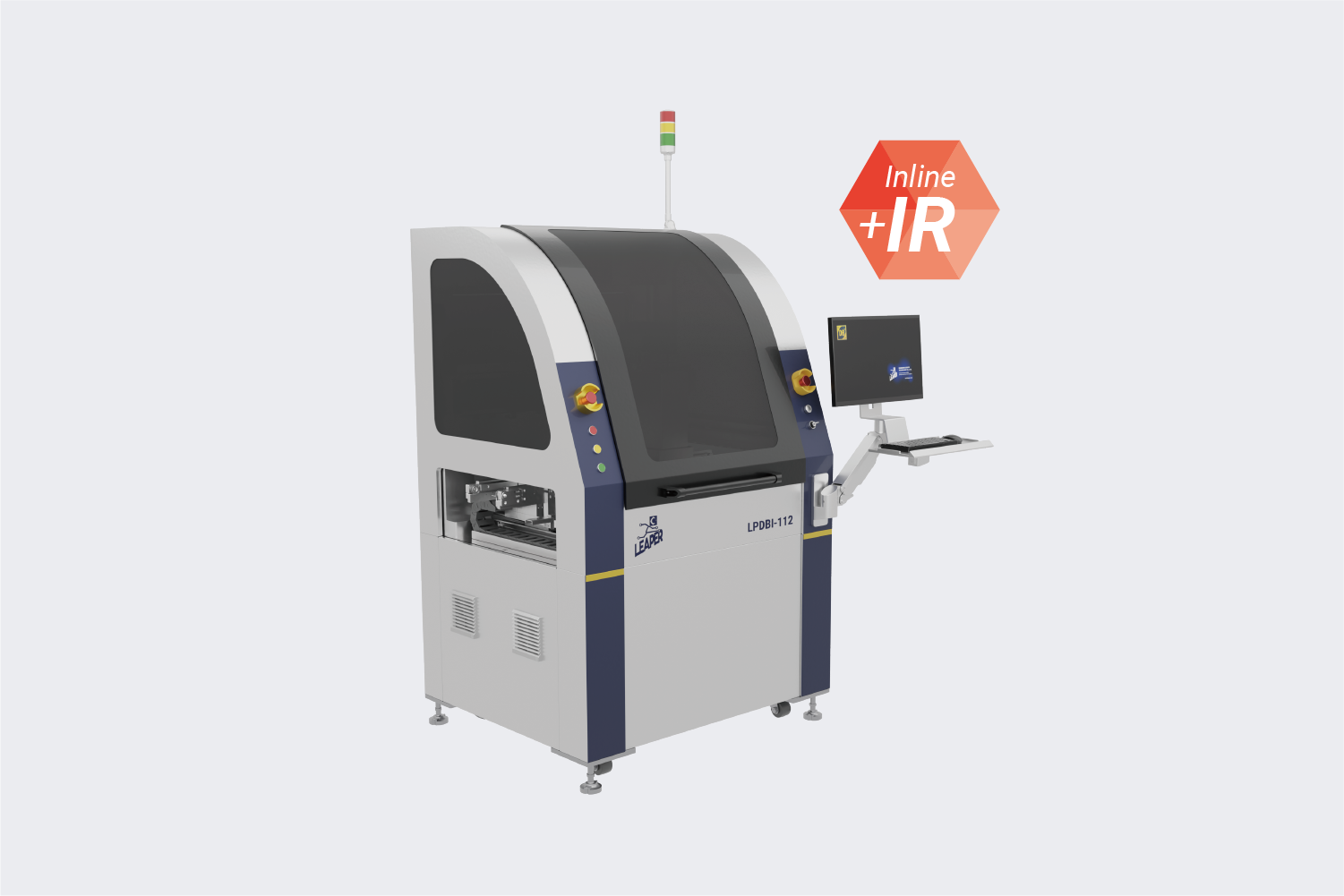

Post-FC DB IR Inspection System
-
Equipment Model
LPDBI-112
-
Applicable Chip Types
≤ 35mil
-
Chip Surface Defect Inspection

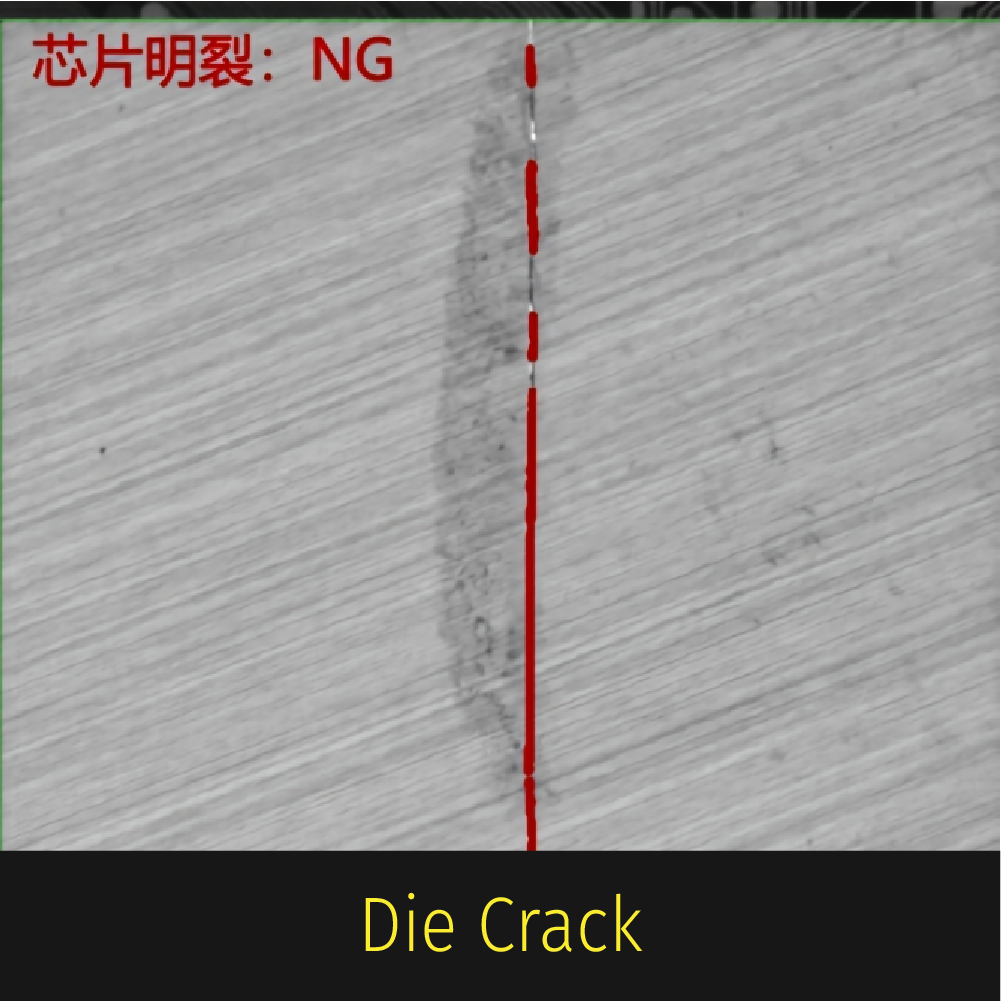

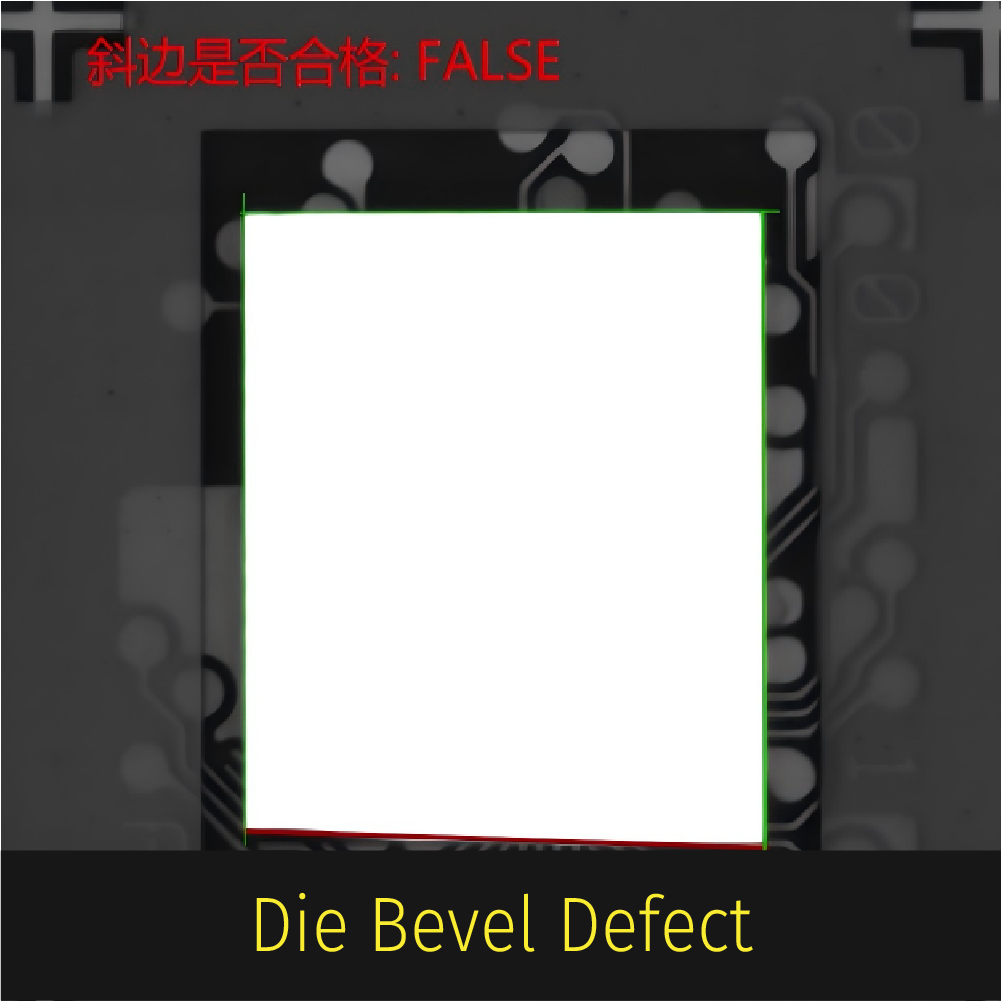

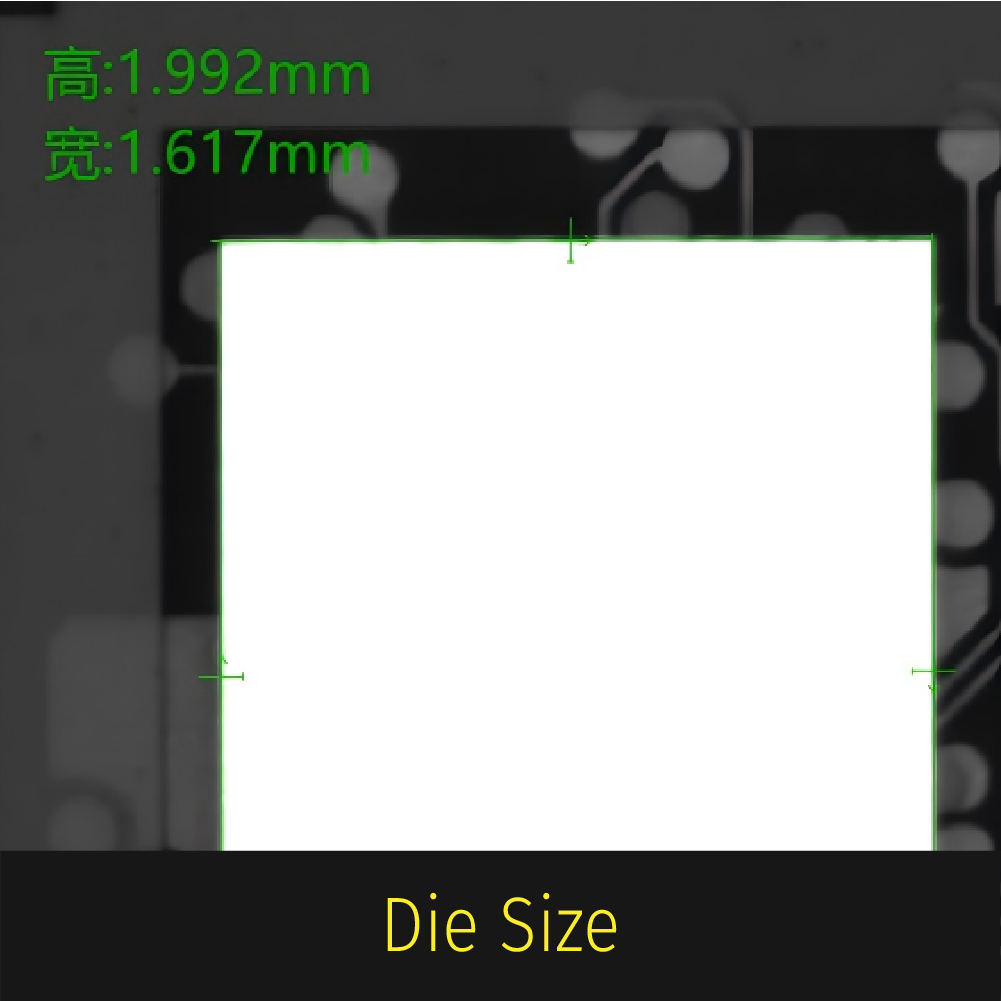

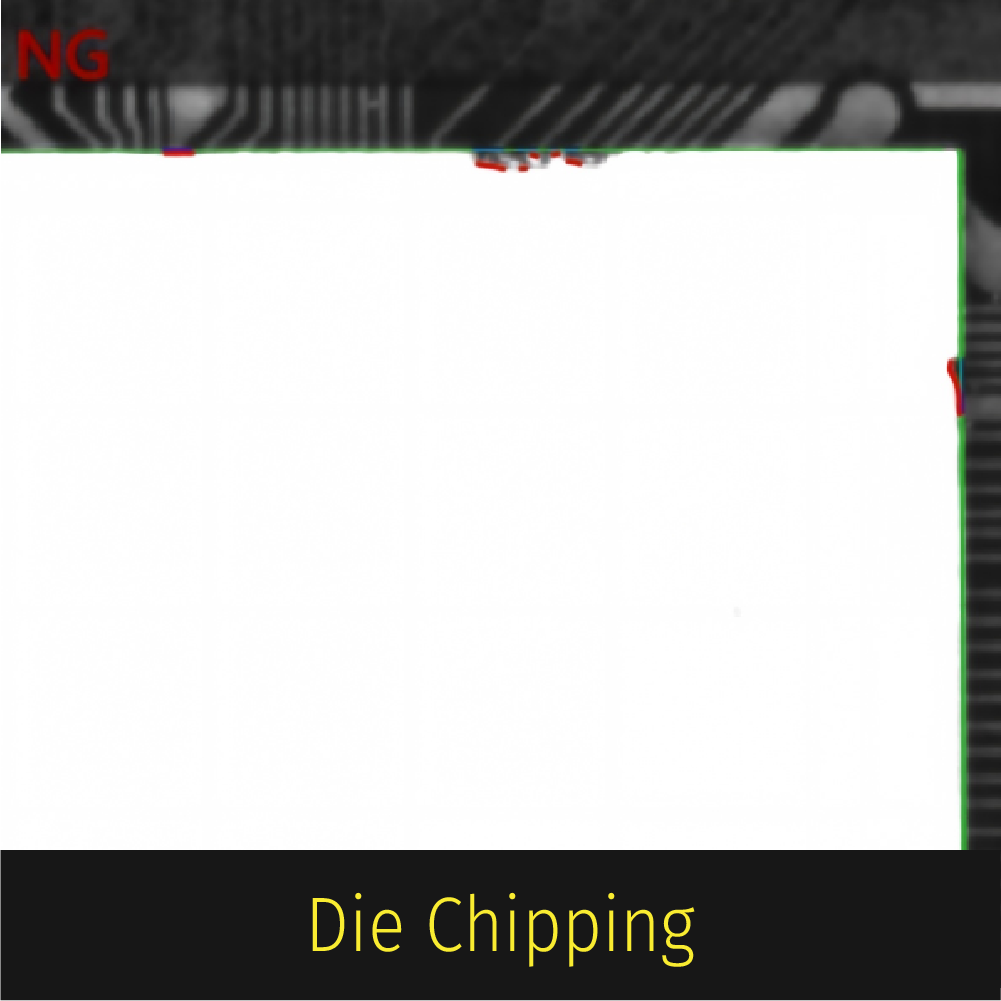

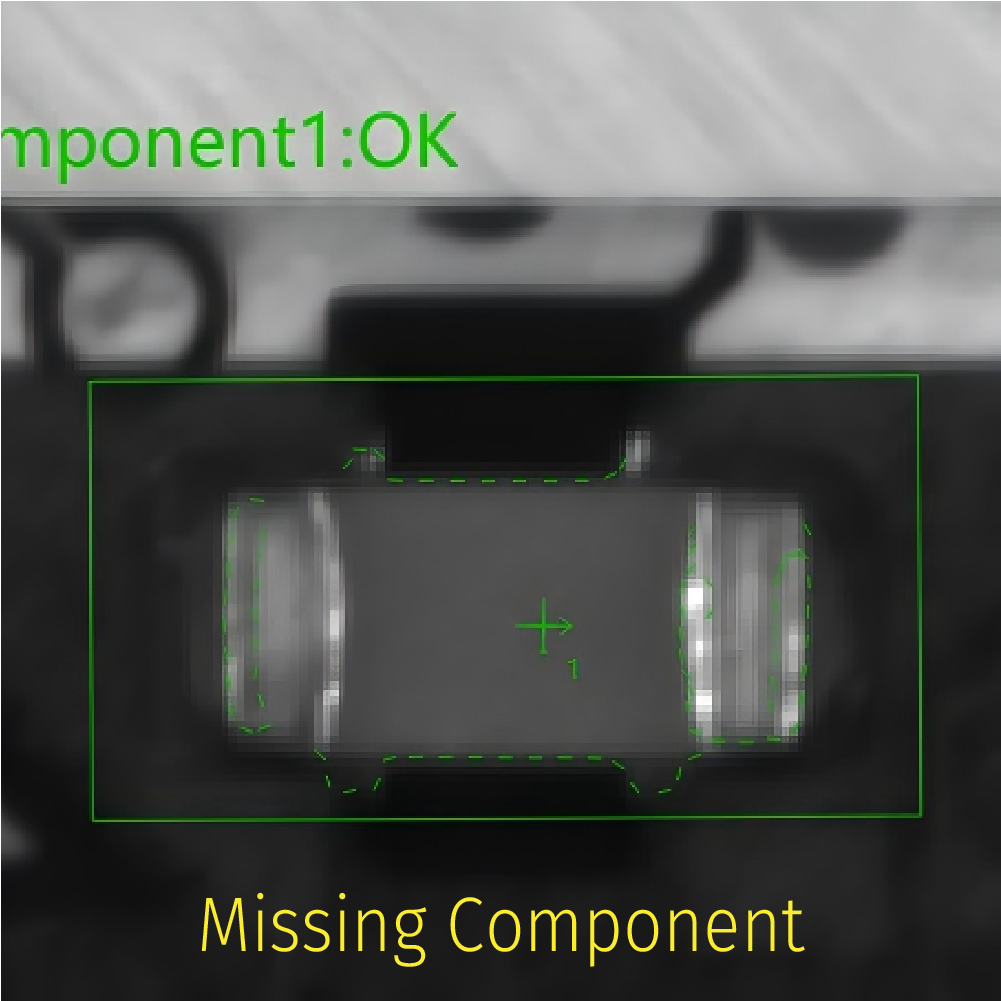

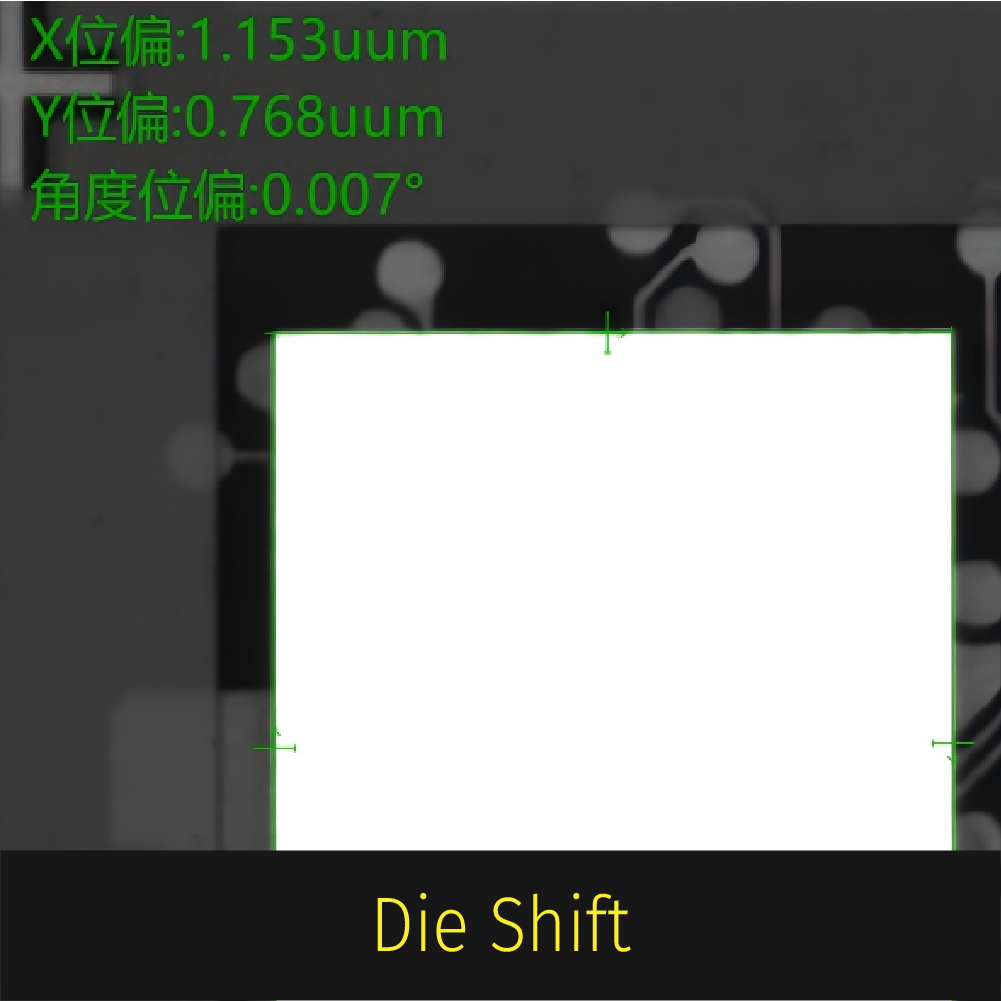

Die Chipping, Die Crack, Die Shift, Die Size, Contamination, Die Bevel Defect, Missing Component
-
Chip Internal Defect Inspection

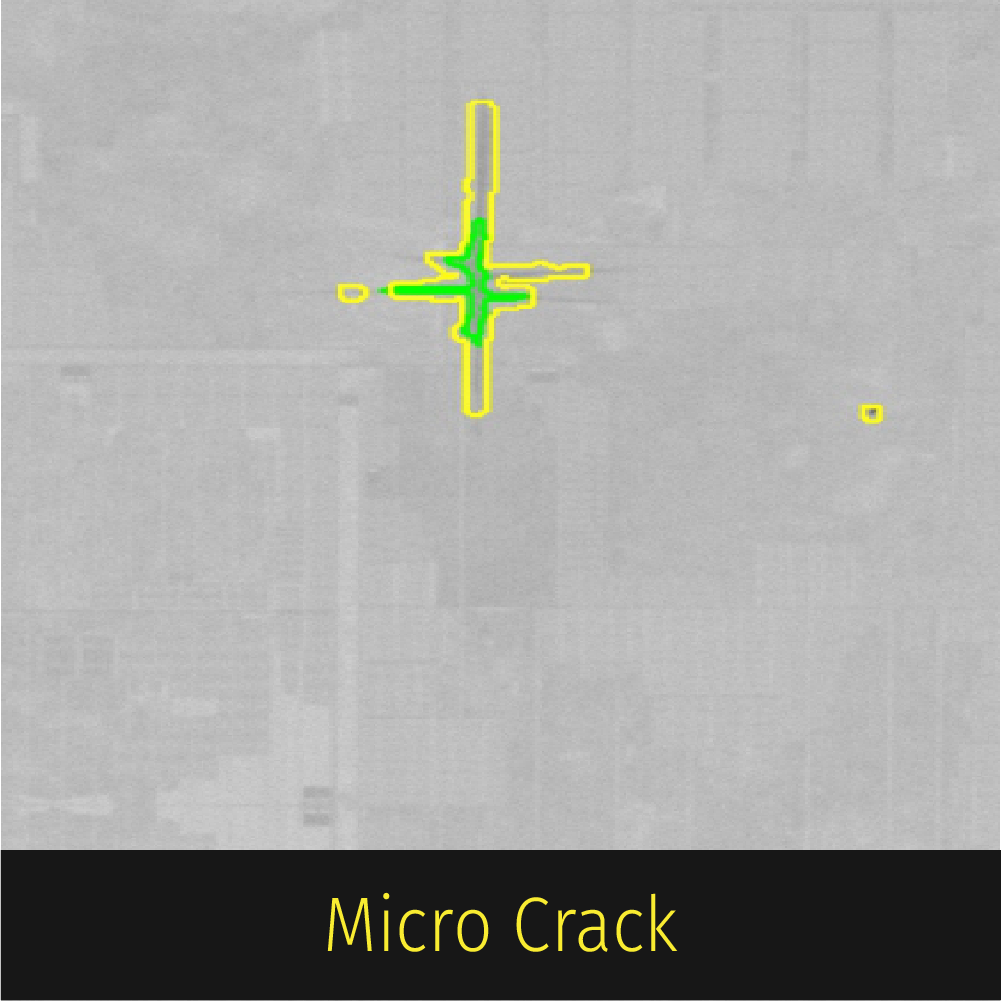

Micro Crack, Die Chipping, Die Crack
-
Machine Configuration
Standalone System
-
Dimensions (W×D×H)
1180mm×1100mm×1820mm (Without Three-Color Tower Light)
1180mm×1100mm×2295mm (With Three-Color Tower Light)
-
Weight
900kg
